Optimization of process parameters in mixed sulfide oxidation bacterial culture using response surface methodology as a tool

2.1 Test organism and cultivation

Two BMC isolates, S1 and S2 were used for this study. The nutrient broth was purchased from Merck (Darmstadt, Germany) and prepared according to the manufacturer’s instruction. Typically, 8 g of nutrient broth (NB) was suspended in a litre of deionized water and agitated on a hot plate until it dissolved. Thereafter, it was sterilized in an autoclave (H + P Varioklav Steam Sterilizer ESCO, Japan) at 121 °C for 15 min, cooled in a water bath to 47 °C and later dispensed in 20 ml Eppendorf bottles. The stock cultures of BMC were maintained throughout the experimental process using a periodic sub-culture at least fortnightly on nutrient agar (NA) and refrigerated at 4 °C until use. To prepare the pre-culture, 1–3 loopful of cells from a 24 h actively growing culture on a nutrient agar plate was dispensed in bottles containing sterile nutrient broth (10% w/v) and incubated at 37 °C (Mummert-Germany/BE 600) for 24 h. The inoculation was aseptically performed inside a biosafety cabinet to avoid contamination, and the flask was sterilized by passing it over a bunsen flame before and after inoculation. To ensure proper bacterial growth, the inoculation was carried out in triplicates.

2.2 Media and synthetic wastewater

The media and additional composite exogenous carbon and nutrients sourced formulation were in accordance with the methods described by Fajardo et al. (2012) and Li et al. (2009) with little modifications. Concisely, the synthetic wastewater contained all the essential constituents for bacterial growths were used. The two solutions S1 and S2 containing DI water; 7.5 g sucrose, 7.5 g NaS.7H₂O, 3.5 g NaHCO₃, 3.6 g KH₂PO₄, 5.5 g NaNO₃, 5.46 g KNO₃, and 0.08 g MgSO₄. The solutions were thoroughly mixed, top up with tap water to balance other micro elements required, the pH was adjusted and maintained at 8.5 using standard buffer solution. Sodium sulfide at a concentration range of 100–500 ppm was added at a specific time interval after start up to enable that the cultures acclimatized to the new environment.

2.3 Experimental set-up

The experiment was conducted in a 2 L laboratory-scale batch reactor type BIOTRON (LiFlus GX, Intran, Korea). Prior to start up, the fermenter was stocked with media (with exception of Na2S.9H₂O), sterilized with the buffer solution and other accessories at 121 °C for 15 min. After cooling, the calibrated reactor was inoculated with 90 ml S1 and 60 ml S2 (10% v/v of the total reactor volume) at the ratio of 60:40. The variation in the strain volume was to create complementary impact of helper bacteria Mani et al. (2017). The efficiency of the process (aerobic) depends on influent sulfide concentration and aeration rate, thus need more of aerobic isolate (P. putida). While S2 being a spore-forming and facultative anaerobe was needed as a supportive isolate against the inhibitory effect of sulfide and toxic metabolites as reported in Garcia (2016) and Mani et al. (2017). The final working volume of the reactor was put at 1.5 L to avoid any splashing effect due to foaming. The operation was carried out batch-wise. The temperature of the medium was maintained at required range using a thermostat water jacket from water bath Moghanloo et al. (2010). Complete homogeneity was maintained inside the reactor with double Rushton mechanical turbine with one foam breaker operated at an agitation of 150 and 200 rpm, respectively. Aeration was achieved using an air compressor (HIBLOW HP-80, Japan) from the reactor base. Furthermore, dissolved oxygen (DO) was maintained within the range of 20 to 5 mg/l as the least value to the end of the experimental cycle. Thermostat control was used to maintain the temperature between 30 and 40 °C. Likewise, the BRT was operated at a retention time of 8 h and each experimental cycle with a four periodic sampling of analysis. The oxidation rate of the system was estimated using the Eq. (1).

where RE is the removal efficiency, ΔS is the difference in sulfide concentration gradient between the influent and at time t, S_o is the initial sulfide concentration.

2.4 Analysis methods

For sample analysis, 2.5 ml aliquots were withdrawn periodically at fixed intervals throughout the 8 h run. Analysis of the samples for the quantification of sulfide depletion was done spectrophotometrically using standard methyl blue method (Trüper and Schlegel, 1964) in Hach (2800DR) spectrophotometer. A standard sulfide reagent kit ((5 to 800 µg/L S²⁻⁾ range) was used after a serial of dilution and the result multiplied by corresponding dilution factor (DF) to arrive at exact sample sulfide range.

2.5 Experimental design

The factors influencing sulfide oxidation was screened using the fractional factorial design of experiment (FFDOE) based on the preliminary experiment (Ahmad et al., 2017). Three process parameters, namely, influent sulfide concentration, temperature and aeration were optimized using FCCCD in design expert software (Stat-Ease, Inc., Version 10.0.5.0 Minneapolis, USA). A total number of 20 experimental at three-coded level (−1, 0 and +1) were performed (Tables 1 and 2). Regression analysis to correlate the influence of independent variables on sulfide oxidation was done using an empirical model of the second-order polynomial (Eq. (2)).

2.6 Validation of the model

The obtained model was validated by predicted with experimented values using bias factor (B_f) and accuracy factor (A_f) validation indices. Bf measure how far the distance experimental values are relative to the reference point of equivalence, while A_f measure on average the space between individual points relative to the point of equidistance, thus indicated how closely related experimental values are to predicted.

2.7 SEM-EDXS biofilm analysis

Samples for this analysis were withdrawn 8 h after start-up in 35 ml Eppendorf tube, and transferred to Karnovsky’s fixative solution for primary fixation as described Lohwacharin and Annachhatre (2010) and Patel et al. (2015, 2016) with some modification. Washing was achieved in thrice distilled water for 15 min with centrifugation at 5000 rpm for 5 min each. This was followed by dehydration in a graded ethanol solutions (30%, 50%, 70%, and 90%) for 10 min each and absolute ethanol (100%) for 15 min. The samples were pipetted to 1 cm diameter aluminum foil paper and air-dried at room temperature in an enclosed bio-safety cabinet overnight. The sample specimens were stuck onto a stub using double-sided colloidal silver for mounting. Samples images were analysed using SEM (Hitachi, TM3030Plus, Japan).

3.1 Model fitting and optimization of BMC sulfide removal efficiency

Table 2 shows face-centered central composite design (FCCCD) matrix for experimental and predicted results for the biological sulfide oxidation by S1 and S2, BMC system. It has been reported that a multivariable system tends to be influenced by some of the linear effects and less significant interactions. From the regression analysis, the quadratic model was the most fitted for the BMC sulfide removal. In addition, the selected quadratic model presented an acceptable adjusted and predicted values, highest F-value and a highly significant model p-value (Table 3). Modified Gompertz function using a nonlinear regression model was adopted to evaluate sulfide removal at effective variables levels.

From the results in Table 2, the percentage sulfide removal was in the range of 70–89.2%. The highest depletion was recorded at the optimum temperature of 35 °C, 150 vvm of aeration and retention time of 8 h; with 89.2% (446 ppm) in 500 ppm, 80.7% (242 ppm) in 300 ppm and 85% (85 ppm) in 100 ppm, respectively. The maximum percentage sulfide removal had a high fitness with the curves indicated by significant R² values (0.9976 to 0.9998) for all tested conditions. Analysis of variance (ANOVA) was used to assess the adequacy of the model (Table 3), while the sensitivity of the response to independent variables was evaluated on the basis of the quadratic polynomial equation below:

where A is the initial sulfide concentration (ppm), B is the temperature (°C) and C is the aeration (vvm).

The relative contribution of model terms to residual variance was evaluated using Fisher’s variance ratio index. A large ratio value indicates that more of the variance is explained by the model Garg et al. (2015). Moreover, lack of fit indicates a variation of the data around a fitted model, which is not significant in a fitted model, whereas it is significant if the model does not fit the data adequately Garg et al., (2015). The F value of this model (5601.16) indicates a high level of significance (p < .0001), and the non-significant lack-of-fit test (14.49%) showed the validity of the model. The measures indices used for testing goodness of fit of the model are R² and adj. R². An R value close to 1 indicates a high degree of correlation between the observed and predicted values (Zhou et al., 2010), which should not be less than 0.8 for biological processes Ölmez (2009). The R² and adj. R² values of this model were 0.9998 and 0.9996, respectively (Table 3). The R² value of 0.9998 indicates that approximately only 0.02% of the total variation cannot be explained by the model thus spells a high significance of the model.

The predicted R² of 0.9875 was also in agreement with adj R² of 0.9996. Moreover, a low value (1.03%) of the coefficient of variation (CV) indicates an appreciable degree for experimental values adequacy (Table 3). Likewise, there was a significant relationship between predicted and experimental values for the BMC sulfide oxidation, indicating a well-fitted model (Fig. 1a). The closeness of the two values, which were depicted graphically by the distribution of the predicted values near to the straight-line reasonably agrees with the experimental data (R² 0.9998). Indeed, this further confirmed good prediction ability of the model. Furthermore, the model terms B, C, BC, B², and C² regardless of being significant, but have a negative effect and their effect on growth spell at the low range Peng et al. (2014). Results from the present study showed that significant sulfide reduction by 70–90% in 100, 300 and 500 ppm under optimized process variables. Generally, sulfide reduction increased with increase in influent sulfide concentration at low temperature and aeration rate with a plateaued reduction at optimum aeration of 150 rpm and temperature of 35 °C in 100 ppm, 300 ppm, and 500 ppm, respectively. It has been reported that biological sulfide oxidation is faster with high sulfide concentration and low oxygen dosing with elemental sulfur as the main product, while low sulfide and high aeration tend to favour sulfate production Diaz et al. (2011), Krayzelova et al. (2014) and Wang et al. (2016).

Close

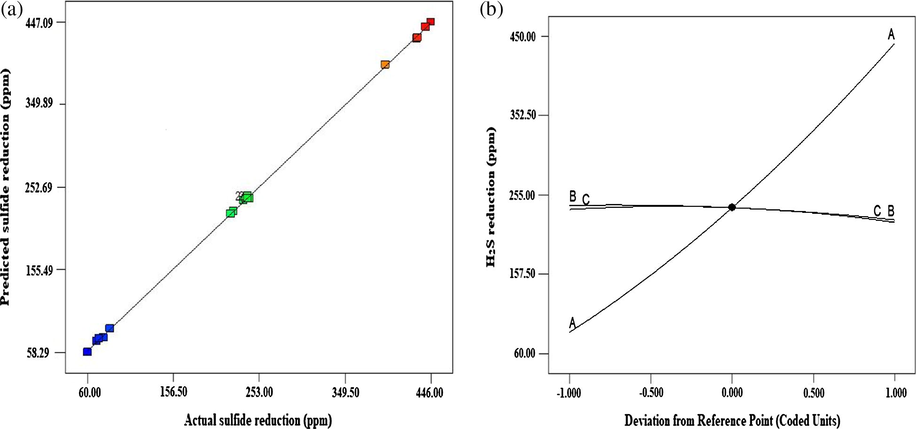

Fig. 1

(a) Predicted versus experimental values and (b) Perturbation plot for P. putida biological sulfide oxidation.

Export to PPT

3.2 Parametric effect on sulfide removal efficiency

The linear impact of influent sulfide concentration, temperature and aeration rate on sulfide reduction is shown in Fig. 1b. Perturbation plot does not show interactions effect, thus it reflected a one-variable-at-a-time pattern. However, it can be utilized in comparing the effects of factors by default in their corresponding center levels in the design space. It is plotted through varying a factor over its range while the other factors remain fixed. It can be clearly seen that only initial sulfide concentration shows positive linear effect, while the other variables indicated negative linear effect, with factors highly significant (p < .0001), although no much difference between positive and negative level in terms of temperature and aeration linear effects. Moreover, interactions effect of the three variables on BMC sulfide oxidation were all significant (p < .0001).

Fig. 2a shows a response surface plot for influent sulfide concentration and temperature on BMC sulfide oxidation. This plot indicated that sulfide reduction rate was sensitive to both the interacting variables. Increased in reduction trend was observed with increase in H₂S and temperature, although the response to temperature was a little bit insensitive at a higher level. In addition, the sensitivity of sulfide on the response was found to be optimum at a moderate range, with concentration of 300 ppm as the effective, probably due to sulfide inhibitory effect on BMC growth and removal Mani et al. (2017). Such a moderate concentration ensures effective utilization and minimum metabolites generation. However, due to complementary helper bacteria effect Garcia, (2016), BMC system is reported to withstand toxic and recalcitrant pollutants, hence the highest removal rate was observed in 500 ppm sulfide concentration. Findings from this study were by far more than what was reported elsewhere in which a concentration of 5 to 30 ppm inhibit certain bacterial strain Buisman et al. (1991) and Janssen et al. (1995). This effect may be due to the fact that one of the bacterial strain in the consortium, B. cereus is a spore-forming mesophilic bacterium with reported tolerant to the oxidative stress Periago et al. (2002). This was found to activate gene expression sigma factors involved in various biochemical and physiological mechanisms which may excite enzymatic activities and subsequent metabolism Ynte et al. (2004). It was also reported that, in such a complementary helper effect, one of the strain may posseses toxic substance enzyme degrading system, while the other provides essential growth substances needed by the other isolate Garcia (2016) and Kimura and Ito (2001). Biological sulfide oxidation was shown to proceed faster at higher concentration and low aeration rate, with elemental sulfur as a favored product over sulfate Diaz et al. (2011), Krayzelova et al. (2014) and Wang et al. (2016), although not all sulfide is converted to sulfur Janssen et al. (1995). Similarly, the interaction effect of H₂S and aeration rate (Fig. 2b) on BMC sulfide oxidation appears to follow the same trend with the plot in Fig. 2a. It is quite clear that removal pattern was sensitive at an aeration rate of between 50–150 vvm. In both plots, optimum removal of 88% was achieved at an optimum temperature and aeration of 35 °C and 150 vvm within a residence time of 8 h. The results agree with some findings reported by Alcántara et al. (2004) under steady dilution and aeration. The interactions effect of temperature and aeration show that the response is not affected much by the increase or decrease in these factors as both depend on sulfide concentration to cast their effect. However, highest response was observed at the two lower ranges (Fig. 2c).

Close

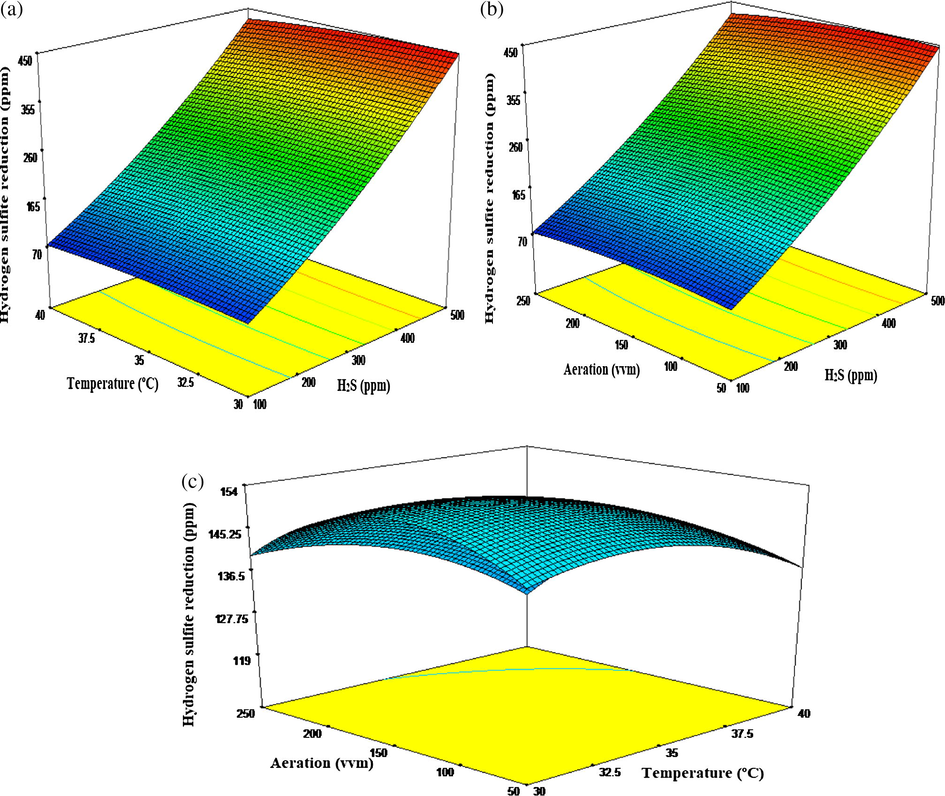

Fig. 2

Three-dimensional (3D) response surface plots showing P. putida sulfide oxidation to interactions of process parameters H₂S and temperature (a) H₂S and aeration (b); temperature and aeration (c).

Export to PPT

3.3 Model validation

The reliability of this model was evaluated using Bias and Accuracy factor index (Eqs. (4) and (5)). Table 4, shows the four different optimal conditions from the predicted matrix validation experiment. The closeness between predicted and observed values (y = x) line depict a satisfactory performance of the model. The Bf indicated that, on average, the predicted values were either above or below the line of equivalence. Ross (1996) proposed that a Bf in the range 0.90 to 1.05 should be considered good. Also, a Bf of either 0.70 to 0.90 or 1.06 to 1.15 should be considered acceptable, while that of 0.7 or 1.5 should be considered unacceptable (bad). The Bf of this model was 1.01, which is within the range considered good and acceptable. However, Bf does not provide an indication of the average accuracy of estimates, so Af was necessary. Furthermore, the larger the Af the less accurate is the average estimate te Giffel and Zwietering (1999), with Af of 1.0 indicating a good and accurate estimate. The average Af for this study was 1.00, indicating a high degree of accuracy. Therefore this model can be recommended as a reference point for optimum BMC sulfide oxidation under optimized process conditions of small-scale BRT. Based on the established model, the maximum BMC sulfide removal was 446 ppm at an optimum temperature and aeration of 35 °C and 150 rpm.

3.4 SEM-EDXS biofilm micrographs

Fig. 3 showed morphology of BMC (P. putida and B. cereus) biofilm from oxidized sulfide samples with an overwhelming sulfur deposition, while the EDXS analytes show a proportionate elemental product percentage. A sample from the dispersed active sludge of the batch reactor where sulfur sediment was presumably retained was withdrawn through the sampling port. From this actively growing BMC, two individual samples from the surface and bottom layer of the sampling bottle were taken. High influent sulfide concentration and low aeration rate have been shown to favour elemental sulfur formation; thus initial sulfide concentration and aeration rate of 50 vvm and temperature of 35 °C were used for this phase of biological sulfide oxidation. The micrographic imaging and elemental analysis for treated sample were compared against the blank (Fig. 3a, b and c).

Close

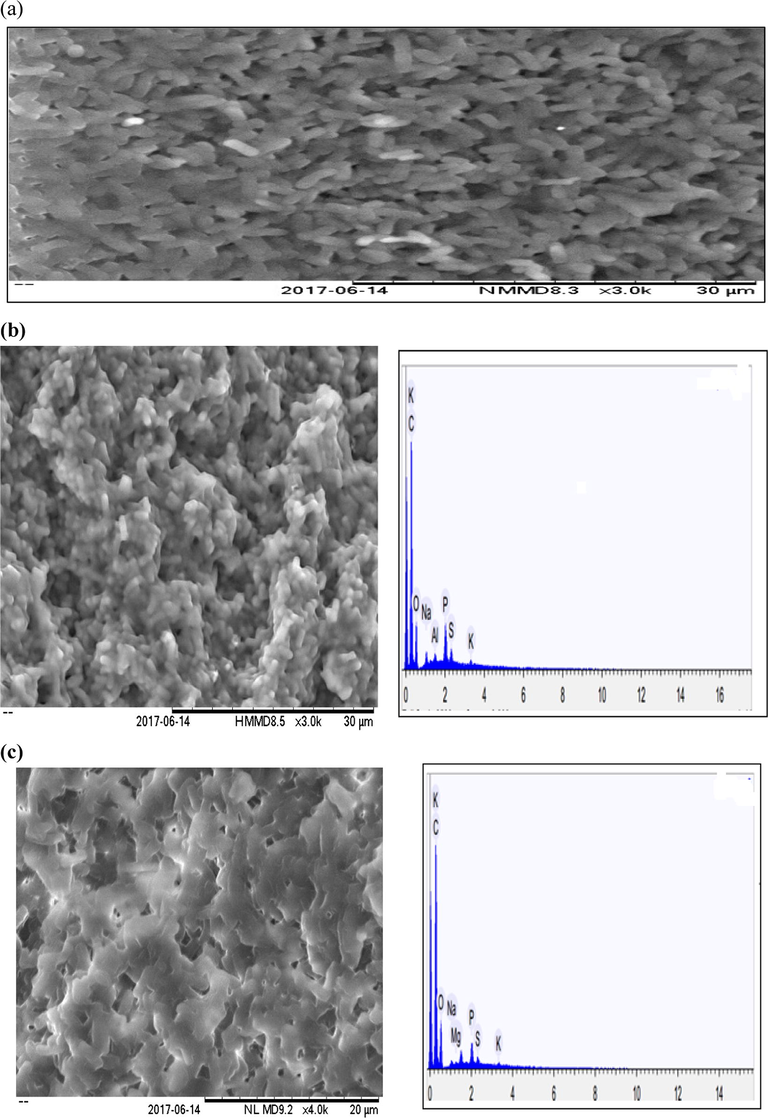

Fig. 3
