Jacobi elliptic function solutions for a two-mode KdV equation

1 Introduction

Most of nonlinear equations are defined by first-order partial differential equation (PDE) in time. They describe unidirectional waves where these equations model one right-moving for $x>o$ . Such equations is the well-known KdV. Other equations model two left-right-moving as in Boussinesq which is defined by second-order PDE in time. Therefore, Korsunsky (1994) developed this phenomena and he was able to identify and derive two-mode KdV (TMKdV) as a nonlinear PDE of second order in time. This two-mode equation represents the propagation of two-wave modes in the same direction simultaneously. The TMKdV reads as

The TMKdV Eq. (1.1) was studied recently in the literature. Analytic methods for this equation have been used, such as the reductive perturbation (Lee and Liu, 2011), Hamiltonian system (Lee and Lee, 2013), Bell polynomials (Hong and Jung, 1999), and others. In Xiao et al. (2016), it was found that both the two solitons in the two modes separate without any change of their initial shapes and velocities except for the phase shifts after each collision. In Lee et al. (2010), three basic conserved quantities, namely, the mass, momentum, and Hamiltonian for the TMKdV equation were constructed by using the prolongation method.

Many models in mathematics and physics are described by nonlinear partial differential equations (NPDEs). The theory of solitary wave solution has contributed to understanding many experiments and complex phenomena in mathematical physics. Thus, the literature has been enriched by well imposed methods that produce exact solutions of such nonlinear equations. Such methods are: The sine-cosine method (Wazwaz, 2004; Alquran and Qawasmeh, 2013; Alquran, 2012), Rational sine-cosine (Qawasmeh and Alquran, 2014), tanh method (Alquran and Al-Khaled, 2011), extended tanh method (Shukri and Al-khaled, 2010), sech-tanh method (Alquran et al., 2012), Exp-function method (Raslan, 2009), the $(G^{\prime }/G)$ -expansion method (Alquran and Qawasmeh, 2014; Qawasmeh and Alquran, 2014) and so on. The aforementioned methods can be classified in two categories; special structure in terms of trigonometric or hyperbolic functions or a finite series of degree n in terms of a trigonometric-hyperbolic function. The order of this finite series is to be determined by a balance procedure. Finally, some new and important developments for searching for analytical solitary waves solutions for PDEs have been added recently to the literature (Seadawy, 2014, 2015, 2016, 2017; Helal and Seadawy, 2009; Seadawy and El-Rashidy, 2013).

The goal of this work is to explore more new exact solutions of the two-mode KdV equation given in (1.1) by using a finite series of degree n in terms of a Jacobi elliptic functions (Liu et al., 2001; Fu et al., 2001) which belongs to the well-known homogeneous balance principle and truncated function expansion method (Fan and Zhang, 1998, 2002; Dai and Zhang, 2006; Liu et al., 2001).

2 Jacobi elliptic sine and cosine functions

In this section we introduce in details the derivation of Jacobi elliptic functions. First, we consider the second order partial deferential equation (PDE)

Applying the linear transformation $\xi =k(x-\lambda t)$ to the above PDE leads to the following ordinary differential equation (ODE)

By forcing $c=1\text{,}\frac{-\alpha }{k^2\lambda }=-m^2$ and $w=\frac{1}{2}(\varphi )$ , we write (2.3) as

Separating the variables in (2.5) leads to the following integral

Now, we define

Therefore, $u=f(\sqrt{1-t^2})\Rightarrow \sqrt{1-t^2}=f^{-1}(u)=\mathit{cn}(u)$ and $\mathit{cn}(u)$ is called the Jacobi elliptic cosine function. Based on the above two definitions, we may write the following argument

Thus, we reach to the identities, ${\mathit{cn}}^2(u)=1-{\mathit{sn}}^2(u)$ and ${\mathit{dn}}^2(u)=1-m^2{\mathit{sn}}^2(u)$ . To know more about these functions, we study their derivatives. First we start with $\mathit{sn}(u)$ ,

Thus,

Now we are ready ti introduce the following formulas

Also, we can observe by the second equation of (2.13) that,

Therefore, $\mathit{cn}(u)=-{\int }_0^t\frac{\mathit{dx}}{\sqrt{(1-x^2)(1-m^2+m^2{x}^2)}}$ . On the other hand, this can be obtained by substituting $t=\cos y$ in the elliptic integral

Equivalently,

Thus, $u=f(t)\Rightarrow t=f^{-1}(u)=\mathit{cn}(u)$ .

Also, $\mathit{sn}(u)=t=f^{-1}(u)$ , where

Now, if $m\to 1$ , then the integral become

Figs. 1 and 2 represent the functions $\mathit{sn}(x\text{,}m)$ and $\mathit{cn}(x\text{,}m)$ for special values of the index m.

Close

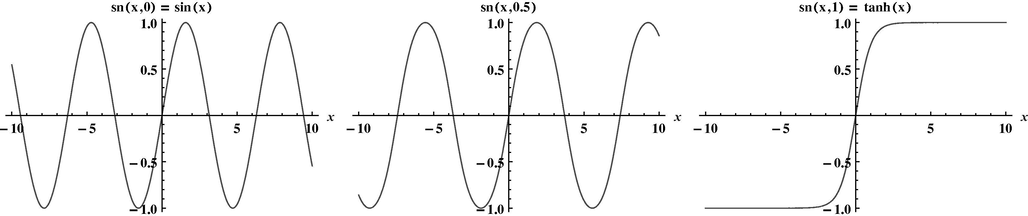

Fig. 1

Plots of the Jacobi $\mathit{sn}(x\text{,}m)$ function $\mathit{sn}(x\text{,}0)=\sin (x)\text{,}\mathit{sn}(x\text{,}\frac{1}{2})\text{,}\mathit{sn}(x\text{,}1)=\tanh (x)$ respectively and $-10<x<10$ .

Export to PPT

Close

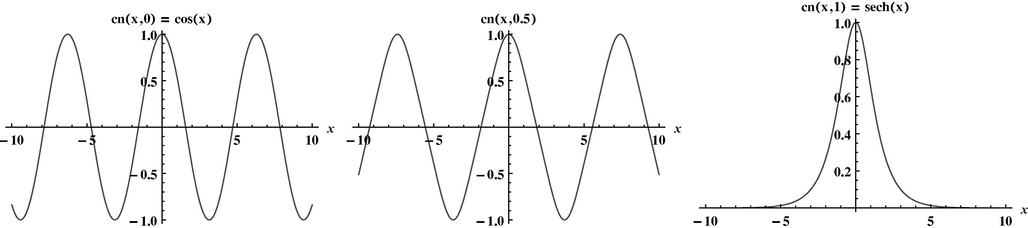

Fig. 2

Plots of the Jacobi $\mathit{cn}(x\text{,}m)$ function $\mathit{cn}(x\text{,}0)=\cos (x)\text{,}\mathit{cn}(x\text{,}\frac{1}{2})\text{,}\mathit{cn}(x\text{,}1)=\text{sech}(x)$ respectively and $-10<x<10$ .

Export to PPT

Now, we will highlight briefly the main steps of the Jacobi elliptic sine-cosine expansion method. We first unite the independent variables x and t into one wave variable $\zeta =x-\mathit{ct}$ to convert the partial differential equation (PDE)

Eq. (2.21) is then integrated as long as all terms contain derivatives. The Jacobi elliptic sine-cosine technique is based on the assumption that the traveling wave solutions can be expressed in terms of the $\mathit{sn}(\xi \text{,}m)$ or $\mathit{cn}(\xi \text{,}m)$ . We therefore introduce a new independent variable

Then, the solution can be proposed a finite power series in Y in the form:

The parameter M is a positive integer, in most cases, that will be determined by using a balance procedure, where by comparing the behavior of $Y^i$ in the highest derivative against its counterpart within the nonlinear terms. With M determined, we collect all coefficients of powers of Y in the resulting equation where theses coefficients have to vanish, hence the coefficients $a_i$ can be determined.

3 Solutions of the two-mode KdV equation

In this section, we apply the Jacobi elliptic sine-cosine expansion method to extract possible solutions of (1.1). By using the wave variable $\xi =k(x-\lambda t)$ and chain rule, the TMKdV equation is reduced to the following ordinary equation:

To determine the coefficients $a_0\text{,}{a}_1\text{,}{a}_2$ and the wave’s parameters $\lambda$ and k, we substitute (3.2) into (3.1) and collect the coefficients for the same power of Jacobi sine function and set them to zero to obtain the following system:

Some of the equation in the above system have been deleted where $a_1=0$ is the solution of each. Now, solving this algebraic system yields

Therefore, the Jacobi sine solution of the two-mode KdV equation is

If $m=1$ in (3.5), then we obtain the hyperbolic tangent solution

Now we proceed as above but replacing the Jacobi sine by Jacobi cosine function in (3.2), i.e.,

Following the procedures considered as in the Jacobi Sine case, one can reach to the following results

Therefore, the Jacobi cosine solution of the two-mode KdV equation is

If $m=1$ in (3.9), then we obtain the hyperbolic secant solution

Finally, if we use the Jacobi DN Solution to the two-mode KdV equation, we get the same obtained solution as given in (3.9) but with value of $\lambda$ of 1.

4 Discussion and concluding remarks

In this work, we succeeded in obtaining Jacobi elliptic sine-cosine solutions for the proposed two-mode KdV Eq. (1.1). We may reduce the calculations performed in the previous section and obtain the Jacobi cosine solution given in (3.9) by using the identity ${\mathit{sn}}^2(\xi \text{,}m)+{\mathit{cn}}^2(\xi \text{,}m)=1$ . Indeed, if we replace ${\mathit{sn}}^2(\xi \text{,}m)$ in (3.5) by $1-{\mathit{cn}}^2(\xi \text{,}m)$ , then $b_0=a_0+a_2$ and $b_2=-a_2$ .

The types of the obtained solutions given in (3.6) and (3.10) are solitons. Solitons are solutions in the form sech and ${\text{sech}}^2(\equiv {\tanh }^2)$ , the graph of a Soliton is a wave where in the limit $x\to \pm \infty$ , the answer is 0.

By using the facts $\tanh (\mathit{ix})=i\tan (x)$ and $\text{sech}(\mathit{ix})=\sec (x)$ , if we let $k=i\mu$ in Eqs. (3.6) and (3.10), then two more periodic solutions will be obtained

Close

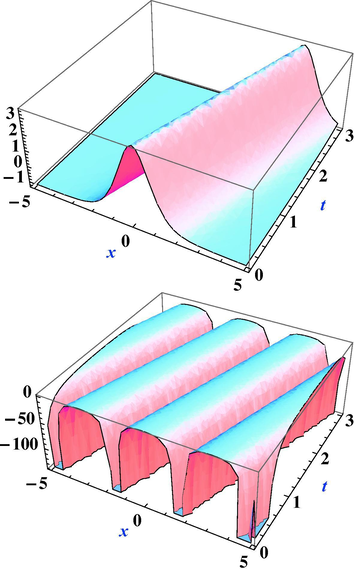

Fig. 3

The obtained solutions of the TMKdV given in (3.6) and (4.1) respectively when $c_1=0.5\text{,}{c}_2=\frac{1}{3}$ . ${\alpha }_1=1\text{,}{\alpha }_2=0.8\text{,}{\beta }_1=0.25\text{,}{\beta }_2=0.5\text{,}k=\mu =1$ and $\lambda =1$ .

Export to PPT
