1 Introduction

A vast scientific analysis of non-Newtonian fluid flow problems on heat and mass transfer has done by many researchers. It has an extensive range of impact on different sectors like power engineering, metallurgy, astrophysics and geophysics. The fourth-grade fluid flow model is exceptional model which has opened a new subway of fluid mechanics. This sort of model is being used to explain the flow attitude of non-Newtonian fluids. Second-grade fluid model exhibits variations of normal stress; these sorts of fluids do not consider shear-thickening and thinning phenomena because they exert constant shear viscosity. With the analysis of third and fourth-grade fluids, the results can be described well for shear thinning and shear thickening phenomena. Generally, non-Newtonian fluids are categorised into three types which are namely differential, rate and integral. Fourth-grade fluid is an important subclass of differential type that’s capable of describing shear thinning and shear thickening effects. However, despite involving a large number of complex parameter in a Fourth-grade fluid, Hayat et al. (2002) have experimented this by the effect of uniform magnetic field combined with steady and unsteady flows over a porous plate. They used differential equation of order six for a numerical solution with a total three boundary conditions related with momentum and finite difference. Lie point symmetries were applied by Hayat et al. (2002) to reduce the number and order of distinct variable of partial differential equations. Here, they have worked only unsteady of similar fluid past on porous plate. The properties of non-Newtonian fluids have attracted numerous scientists (Asghar et al., 2007; Eldabe et al., 2016; Eldahab and Salem, 2005; Ezzat, 2010) in recent times. Applesauce, tomato ketchup, shampoos contain the properties of non-Newtonian fluid. The non-Newtonian fluid flow model of nonlinear coupled differential equations was solved (Sahoo and Poncet, 2013) with shooting and Broyden’s method. By assembling the impressions of thermal radiation and thermo-diffusion (Bhatti and Rashidi, 2016) examined the attitude of Williamson nanofluid which was flowing from the stretched surface. Bhatti et al. (2018) observed the bioheat and mass transfer phenomena for dual phase flow of peristaltic propulsion via Darcy-Brinkman-Forchheimer porous media. In recent times, (Ellahi et al., 2018a; Ellahi et al., 2018b) investigated the impression of nano liquid namely kerosene-alumina on hydromagnetic Poiseuille flow. In addition, the impact of entropy generation was also examined with slip influence on moving plate. The pioneer work of representing the combine impressions of magnetic and porous term for diversified motions was exhibited by Fetecau et al. (2018).

Moreover, (Hassan et al., 2017; Reza-E-Rabbi et al., 2018; Hassan et al., 2018a; Hassan et al., 2018b) investigated diversified base fluids with different nanoparticles to develop the area of heat transfer. Considering the impact of electro-magnetohydrodynamics the flow character of multiphase fluids were analysed by Hussain et al. (2018) in a base fluid with the appearance of hafnium particles. However, some reputed researchers (Khan et al., 2018; Majeed et al., 2018; Mishra et al., 2017; Shahid et al., 2017) developed the heat transfer as well as mass transfer phenomena for various fluids flow on different surfaces in the very recent period. For examining the character of blood flow, (Shahid et al., 2018) conducted their experiment via a capillary with the appearance of gyrotactic microorganisms. The model of Couette-Poiseuille flow was established by Shehzad et al. (2018) to analyse aluminium oxide-PVC nanofluid in a channel. Envisaging the impact of hydromagnetic bio-bi-phase flow, (Zeeshan et al., 2018) exhibited the peristaltic transportation of Jeffery fluid in a quadrate duct.

Diversified fluid models have been mentioned to analyse non-Newtonian fluids attitude. A characteristic comparison between non-Newtonian fluid of 4th grade and Newtonian fluid had been analysed by Wang and Wu (2007) and studied numerically of this fluid in case of unsteady MHD flow to an oscillating plate by using finite difference method to solve higher order non-linear partial differential equation after considering four asymptotic boundary conditions. The recent work on comparing with analytical and numerical by Aziz and Mahomed (2013), they have been investigated reduction and solution of unsteady fourth-grade fluid on porous pate by using translational symmetries. Arifuzzaman et al. (2017a) analysed chemically reactive viscoelastic with nanoparticle over porous stretching sheet by imposing explicit scheme. Similar method was applied to micropolar fluid, Jeffrey nanofluid, optically grey-nanofluid by considering different conditions with convergence test (Arifuzzaman et al., 2018a; Arifuzzaman et al., 2017b; Arifuzzaman et al., 2018b; Arifuzzaman et al., 2017c; Biswas et al., 2017; Biswas et al., 2018; Khan et al., 2012a). In recent eras, the study of radiation absorption (Arifuzzaman et al., 2017b; Arifuzzaman et al., 2018b; Biswas et al., 2017; Umamaheswar et al., 2016) and heat generation (Khan et al., 2012b; Khan et al., 2017; Li et al., 2016; Srinivasa and Eswara, 2016) due to mass and heat transfer in fluid flow is industrially significant because of engineering and manufacturing needs for example heat insulation, geothermal systems, combustion, metal waste, catalytic reactors, reactor safety, oil reservoirs, etc.

To author’s best knowledge, the investigation of naturally convective fourth grade radiative fluid flow resulting from infinite perpendicular porous plate has not done yet. Therefore, this phenomenon is analysed in this work. The specific objectives of this numerical investigation are listed below:

• To analyse unsteady naturally convective mass and heat transfer flow of fourth grade radiative fluid resulting from infinite perpendicular porous plate by considering non-linear order chemical reaction and heat generation with thermal diffusion.

• To establish a mathematical solution of the flow governing model which includes transient momentum, diffusion balance and energy equations and solve it by employing finite difference scheme explicitly.

• To present a details stability and convergence study for optimising appropriate parameters.

• To exhibit velocity, temperature and concentric fields graphically along with Nusselt number, skin friction and Sherwood number profiles.

• To represent the tabular analysis of C_f, N_u, and S_h fields for a steady-state solution.

• To present the advanced visualisation of fluid flow through streamlines and Isothermal lines.

2 The mathematical fluid flow model

A naturally convective and thermally radiative incompressible simple fourth-grade fluid is defined for unsteady case model, and the fluid is passing through a vertical infinite porous plate with destructive chemical reaction and heat generation effect (Fig. 1). With the history of the deformation gradient, the current stress of an element is constituted for an incompressible fluid flow model, and it can be exhibited as,

Close

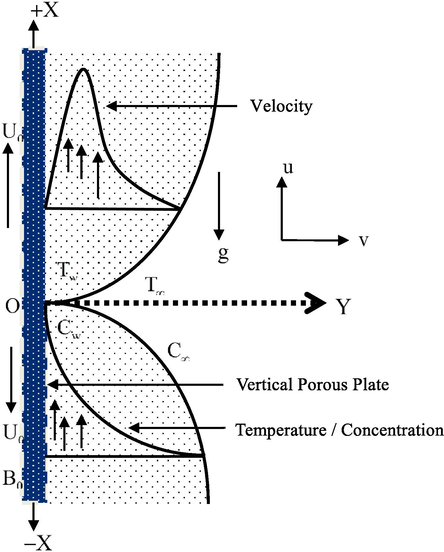

Fig. 1

The physical configuration of the flow.

Export to PPT

Where, $\text{pI}$  = indeterminate portion of stress–tensor and S = deformation gradient. Coleman and Noll (1960), prescribed different sort of incompressible fluid of category n as viscous fluid agreeing on the following equation (Hayat et al., 2002; Sahoo and Poncet, 2013),

The asymptotic expansion is being employed for functional in Eq. (1) via an obstacle parameter and the tensors ${\text{K}}_{\text{j}}$ are achieved for n = 4 as (Hayat et al., 2011, 2002; Sahoo and Poncet, 2013),

The Rivlin–Ericksen tensors $({\text{L}}_{\text{n}})$ are prescribed by following recursion connection:

A third-grade model is achieved when n = 3 in Eq. (2) and ${\gamma }_{\text{i}}=0$ . For n = 2 in Eq. (2), ${\beta }_{\text{i}}=0$ and ${\gamma }_{\text{i}}=0$ a second-grade fluid is adopted, and the above-discussed model becomes a usual Navier-Stokes fluid for ${\alpha }_{\text{i}}=0$ , ${\beta }_{\text{i}}=0$ and ${\gamma }_{\text{i}}=0$ (i.e. n = 1 in (2)). The thermally radiative and chemically reactive flow is heading in x-direction along infinite porous plate with heat generation. Here, ${\text{U}}_0$ is the uniform velocity where ${\text{T}}_{\infty }$ and ${\text{C}}_{\infty }$ are fluid temperature and concentration away from the layer. A uniform magnetic field ${\text{(B}}_x\text{=}\text{0,}{\text{B}}_{\text{y}}\text{=}{\text{B}}_{\text{0}})$ is imposed in the normal direction of the flow. Under the above consideration, the equations that described the physical circumstances are given below (Arifuzzaman et al., 2018b,c; Gul et al., 2016; Hayat et al., 2011; Wang and Wu, 2007):

Continuity Equation,

Momentum Equation,

Energy Equation,

Concentration Equation,

with boundary condition,

Here, ${\text{q}}_{\text{r}}=-\left(4{\sigma }_{\text{s}}/3{\text{k}}_{\text{e}}\right)\left(\partial {\text{T}}^4/\partial \text{y}\right)$ is the Rosseland approximation for radiative heat flux. The temperature differences are chosen small inside the flow. Then expanding $T^4$ by approximating Taylor series at ${\text{T}}_{\infty }$ , it is adopted that ${\text{T}}^4\cong 4{\text{T}}_{\infty }^{3}T-3{\text{T}}_{\infty }^4$ (higher terms are deducted).

Then the Eq. (11) becomes,

To find the solutions of the governing Eqs. (9)–(14) the non-dimensional quantities are adopted as:

Continuity Equation,

Momentum Equation,

Energy Equation,

Concentration Equation,

with boundary condition,

where the dimensionless parameters are: Suction parameter, $\text{S =}{\text{v}}_{\text{0}}/{\text{U}}_{\text{0}}$ , Grashof number, ${\text{G}}_{\text{r}}=\text{g}{\beta }_{\text{T}}({\text{T}}_{\text{w}}-{\text{T}}_{\infty })\upsilon /{\text{U}}_0^3$ , mass Grashof number, $G_c=g{\beta }_C(C_w-C_{\infty })\upsilon /U_0^3$ , magnetic parameter, $\text{M}={\sigma }^{\prime }{\text{B}}_0^2\upsilon /\rho {\text{U}}_0^2$ , second-grade fluid parameter, $\alpha ={\alpha }_1{\text{U}}_0^2/\rho {\upsilon }^2$ , third-grade fluid parameters, $\beta ={\beta }_1{\text{U}}_0^4/\rho {\upsilon }^3$ , ${\beta }_{\text{A}}=6({\beta }_2+{\beta }_3){\text{U}}_0^4/\rho {\upsilon }^3,$ fourth-grade fluid parameter, ${\gamma }_{\text{A}}={\gamma }_1{\text{U}}_0^6/\rho {\upsilon }^4$ , $\gamma =2(3{\gamma }_2+{\gamma }_3+{\gamma }_4+{\gamma }_5+3{\gamma }_7+{\gamma }_8){\text{U}}_0^6/\rho {\upsilon }^4$ , Darcy number, ${\text{D}}_{\text{a}}={\text{kU}}_0^2/{\upsilon }^2$ , radiation parameter, $R=\sigma T_{\infty }^3/k_{1}k$ , heat source parameter, $\text{Q}={\text{Q}}_0\upsilon /{\text{U}}_0^2\rho {\text{c}}_{\text{p}}$ , Prandtl number, $P_r=\rho c_p\upsilon /\kappa$ , Eckert number, ${\text{E}}_{\text{c}}={\text{U}}_0^2/{\text{c}}_{\text{p}}({\text{T}}_{\text{w}}-{\text{T}}_{\infty })$ , Schmidt number, ${\text{S}}_{\text{c}}={\text{D}}_{\text{m}}/\upsilon$ , order of chemical reaction = P, Soret number, ${\text{S}}_{\text{r}}={\text{D}}_{\text{m}}{\kappa }_{\text{T}}\left({\text{T}}_{\text{w}}-{\text{T}}_{\infty }\right)/{\text{T}}_{\text{m}}\upsilon \left({\text{C}}_{\text{w}}-{\text{C}}_{\infty }\right)$ and chemical reaction, ${\text{K}}_{\text{r}}=\upsilon {\text{K}}_{\text{c}}{({\text{C}}_{\text{w}}-{\text{C}}_{\infty })}^{\text{p}-1}/{\text{U}}_0^2$ .

In addition, the physical momentum, heat and mass properties such as skin-friction, the Nusselt and Sherwood number, which are elucidated as (Arifuzzaman et al., 2018b),

3 Numerical solution

Explicit finite difference technique is being performed for resolving Eqs. (16)–(20) within conferred boundary conditions. A rectangular flow field is adapted for distributing the grid lines which are collateral to X and Y axes (Fig. 2). For the current inquiry, the following things are chosen as,

Close

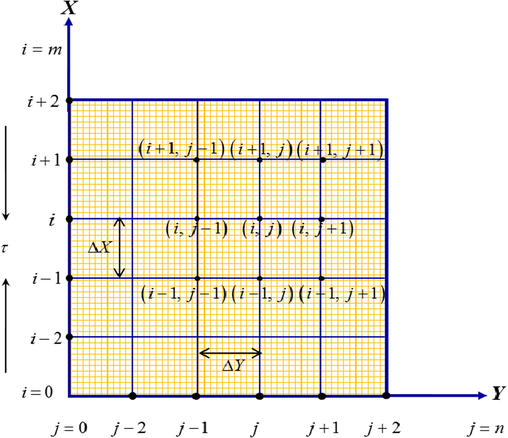

Fig. 2

Numerical grid setup.

Export to PPT

Grid space: m = 200, n = 200, Plates height: X_max = 15, Y_max = 60 as Y → ∞,

Mesh sizes: $\mathrm{\Delta }Y=0.30\left(0⩽Y⩽50\right)$ and $\mathrm{\Delta }\text{X}=0.075\left(0⩽\text{X}⩽15\right)$ , Δτ = 0.005

Now, Eqs. (16)–(20) are changed into the following finite difference form,

Momentum Equation,

Energy Equation,

Concentration Equation,

The initial and boundary condition with a finite difference scheme as,

where, the subscripts $i$ and $j$ designate the grid points with $X$ and $Y$ coordinates respectively and value of time, $\tau =n\mathrm{\Delta }\tau$ , where, $n=1,2,3,4.....$ ..

4 Stability and convergence analysis

The ongoing analysis requires the study of the stability and convergence test because an explicit procedure is being performed. Here, Eqs. (16) is disregarded because Δτ is not available there. The Fourier expansions are attained as in Eqs. (27) and (28) for all $U,\theta$ and $\phi$ .

and

Now, imposing Eqs. (27)–(28) into Eqs. (17)–(20) and choosing U, V as constant we obtain the following equations as;

The momentum equation becomes,

where,

The energy equation becomes,

where,

And the concentration equation becomes,

where,

Eqs. (29), (31) and (33) can be presented in the matrix form as, ${\eta }^{\prime }=T\eta$ , $$\left[\begin{array}{c}{\psi }^{\prime }\\ {\theta }^{\prime }\\ {\phi }^{\prime }\end{array}\right]=\left[\begin{array}{ccc}{\text{A}}_1& {\text{A}}_2& {\text{A}}_3\\ 0& {\text{A}}_4& 0\\ 0& {\text{A}}_6& {\text{A}}_5\end{array}\right]\left[\begin{array}{c}\psi \\ \theta \\ \phi \end{array}\right]$$

where, $${\eta }^{\prime }=\left[\begin{array}{c}{\psi }^{\prime }\\ {\theta }^{\prime }\\ {\phi }^{\prime }\end{array}\right],\text{T}=\left[\begin{array}{ccc}{\text{A}}_1& {\text{A}}_2& {\text{A}}_3\\ 0& {\text{A}}_4& 0\\ 0& {\text{A}}_6& {\text{A}}_5\end{array}\right]$$

and

Diversified data of T makes the analysis quite hard thus considering Δτ → 0, hence, ${\text{A}}_2\to 0,{\text{A}}_3\to 0\text{and}{\text{A}}_6\to 0$ . $\therefore \text{T}=\left[\begin{array}{ccc}{\text{A}}_1& 0& 0\\ 0& {\text{A}}_4& 0\\ 0& 0& {\text{A}}_5\end{array}\right]$ . As a result, the achieved Eigenvalues are ${\text{A}}_1={\lambda }_1,{\text{A}}_4={\lambda }_2$ and ${\text{A}}_5={\lambda }_3$ which satisfy the following stability condition as,

and

Let, $${\text{a}}_1=\mathrm{\Delta }\tau ,{\text{d}}_1=2\frac{\mathrm{\Delta }\tau }{{\left(\mathrm{\Delta }\text{Y}\right)}^2}\text{,}{\text{d}}_2=\frac{\mathrm{\Delta }\tau }{\mathrm{\Delta }\text{Y}}{\text{, d}}_{\text{3}}=\left|-\text{S}\right|\frac{\mathrm{\Delta }\tau }{\mathrm{\Delta }\text{Y}}\text{and}{\text{d}}_4=\frac{\mathrm{\Delta }\tau }{\mathrm{\Delta }{\text{Y}}^2}$$ where, a₁, d₁, d₂, d₃ and d₄ are real non-negative numbers and $\alpha \mathrm{\Delta }X=m\pi ,\beta \mathrm{\Delta }Y=n\pi$ .

Now, using Eq. (36) and considering the assumed criterions, A₄ and A₅ are attained as, $${\text{A}}_4=1-2\left[\frac{{\text{d}}_{\text{3}}}{2}+{\text{d}}_{\text{1}}\frac{1}{{\text{P}}_{\text{r}}}\left(1+\frac{16}{3}\text{R}\right)+\frac{\text{Q}}{2}{\text{a}}_1-\frac{\alpha {\text{E}}_{\text{c}}}{2}{\text{d}}_{\text{2}}+\frac{\beta }{2}{\text{d}}_{\text{4}}\right],{\text{A}}_5=1-2\left[{\text{d}}_1\frac{1}{\text{Sc}}+\frac{{\text{d}}_3}{2}-\frac{{\text{a}}_1}{2}{\text{K}}_{\text{r}}\right].$$

The allowable maximum negative numbers are ${\text{A}}_1=-1$ , ${\text{A}}_4=-1$ and ${\text{A}}_5=-1$ . Thus, the stability criterion is established as, $$\frac{2\mathrm{\Delta }\tau }{{\text{P}}_{\text{r}}{\left(\mathrm{\Delta }\text{Y}\right)}^2}\left(1+\frac{16}{3}\text{R}\right)+\frac{\text{Q}\mathrm{\Delta }\tau }{2}+\frac{\text{S}\mathrm{\Delta }\tau }{\mathrm{\Delta }\text{Y}}-\frac{\alpha {\text{E}}_{\text{c}}}{2}\frac{\mathrm{\Delta }\tau }{\mathrm{\Delta }\text{Y}}+\frac{\beta \mathrm{\Delta }\tau }{2\mathrm{\Delta }{\text{Y}}^2}⩽1,\frac{2\mathrm{\Delta }\tau }{\text{Sc}{\left(\mathrm{\Delta }\text{Y}\right)}^2}+\frac{\text{S}\mathrm{\Delta }\tau }{\mathrm{\Delta }\text{Y}}-\mathrm{\Delta }\tau {\text{K}}_{\text{r}}⩽1.$$

For, $\text{U = V = T = C = 0}$ together with the data of $\mathrm{\Delta }\tau =0.005$ and $\mathrm{\Delta }\text{Y}=0.30$ the existing work is converged for ${\text{P}}_{\text{r}}⩾0.43$ and $\text{Sc}⩾0.168$ .

5 Results and discussion

Theoretical work on the laminar flow of fourth-grade fluid has been investigated numerically. The study has been analysed on thermally radiative, and chemically reactive convective fourth-grade fluid flow over a vertical infinite porous plate with the effect of heat source, magnetic field and viscous dissipation has been studied numerically. To validate the present numerical analysis, a numerical comparison is provided in Table 1. It can be seen that the present simulation can predict the previous results with an insignificant deviation. Moreover, the impression of system parameters on C_f, N_u, and S_h are also investigated in Table 2.

The impact of diversified physical parameters along with dimensionless second-grade, third-grade and fourth-grade parameters are depicted graphically on different flow fields. The default values for the pertinent parameters are taken as Ec = 0.0001, Sc = 0.50, Pr = 0.71, α = 0.20, β = 0.05, β_A = 0.05, γ = 0.05, γ_A = 0.05, R = 0.05, Sr = 0.003, Kr = 0.50, Da = 1.0, Gr = 10.0, Gc = 5.0, S = 0.10, M = 0.30. In addition, for advanced visualization of fluid, streamlines and isotherms are also exhibited. The interaction of electrically conducting fluids with magnetic fields, through electromagnetic forces called Lorentz forces. Strong magnetic parameter (M) creates retarding force namely Lorentz force which diminishes fluid velocity.

Fig. 3 depicts the drag force effect on fluid flow and decreases the velocity profiles with the increase ( $0.\text{1}0⩽\text{M}⩾\text{1}.\text{5}0$ ) of the magnetic parameter (M). The Curve to curve fluctuation for velocity profiles declines 23.025%, 22.53%, 22.17%, 21.80% and 21.46% as M changes from 0.10 to 1.50 respectively at $\tau =4.0$ . Physically, as the intensity of the magnetic field develops a resistive force namely, Lorentz force occurs and impedes the fluid motion. Skin friction behaviour occurred because of the friction loss is the reduction of pressure that happens inside the pipe for the impression of fluid's viscosity close to the surface of the pipe.

Close

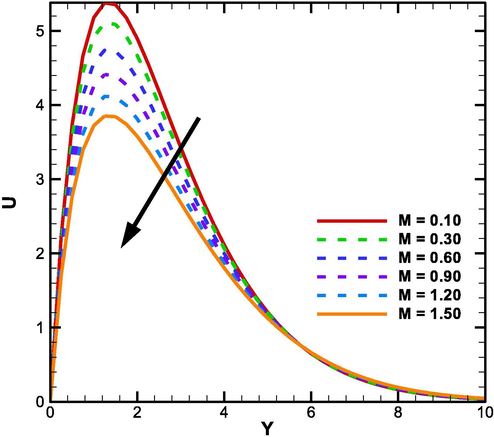

Fig. 3

Dominance of M on U.

Export to PPT

Fig. 4 illustrates the skin friction profiles for the increment of magnetic parameter (M). The fields of C_f plunge with rising data of M because the imposed magnetic field tends to decelerate the fluid flows and hence the surface friction force declines.

Close

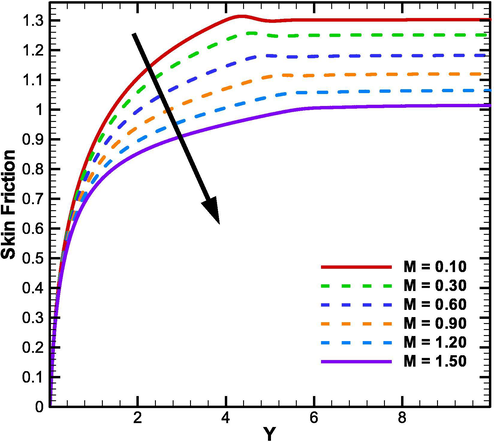

Fig. 4

Dominance of M on C_f.

Export to PPT

For the increase of higher order material parameters, elastic characteristics deformation leads to the changes of shape or size of fluid due to an applied force or transformation of heat. For the increase of viscoelastic property, the momentum boundary layer thickness becomes more conservator with the plate, for this reason, velocity profiles decrease. With the rise of higher order material parameters, the viscoelasticity property enhances the molecular particles gathering and temperature absorption rate increase. As a result, the fluid region temperature increases for higher order material parameters.

Figs. 5 and 6 demonstrate the velocity and temperature fields due to the increment ( $0.50⩾\alpha ⩾3.50$ ) of the dimensionless second-grade fluid parameter ( $\alpha$ ). Velocity profiles diminish, and temperature fields increase for the upsurging second-grade fluid parameter ( $\alpha$ ). Curve to curve fluctuation of velocity profile with the variation for $\alpha$ at $\tau =3.0$ and 9.24%, 8.97%, 17.48%, 8.51%, 16.59 and 16.03% changes for increment of 0.5 (0.50–3.50).

Close

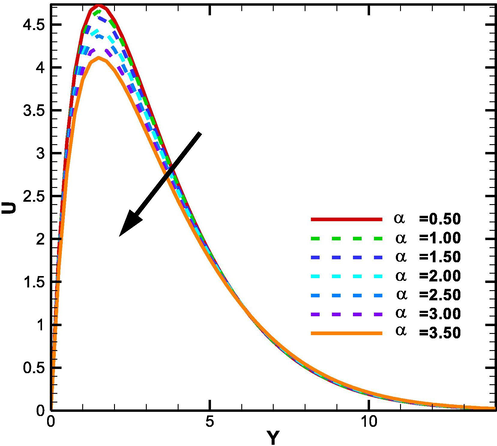

Fig. 5

Dominance of α on U.

Export to PPT

Close

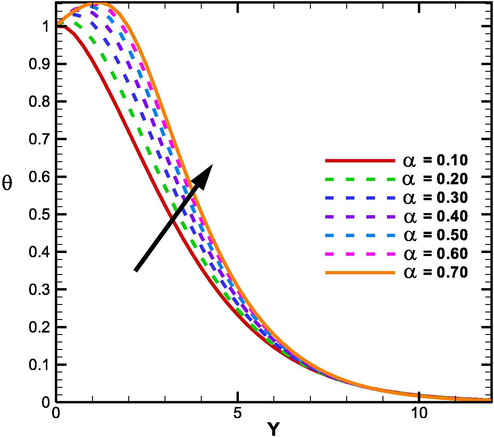

Fig. 6

Dominance of α on θ.

Export to PPT

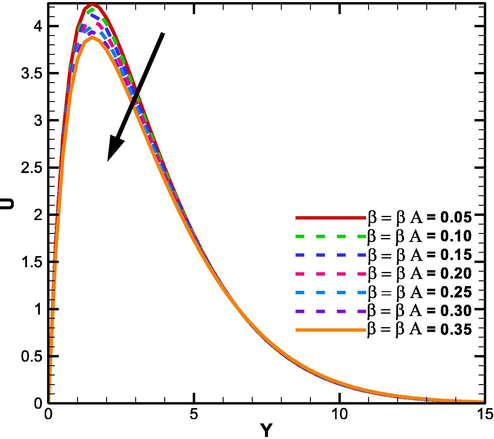

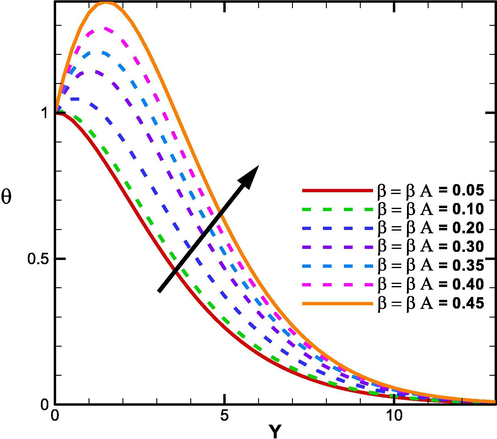

Figs. 7 and 8 depict the impact of third-grade fluid parameters ( $0.05⩽\text{(}\beta \text{=}{\beta }_{\text{A}}\text{)}⩾0.35$ ) on velocity and temperature fields. Velocity fields diminish, and temperature fields develop with the increase of third-grade fluid parameter ( $\beta \text{and}{\beta }_{\text{A}}$ ).

Close

Fig. 7

Dominance of β and β_A on U.

Export to PPT

Close

Fig. 8

Dominance of β and β_A on θ.

Export to PPT

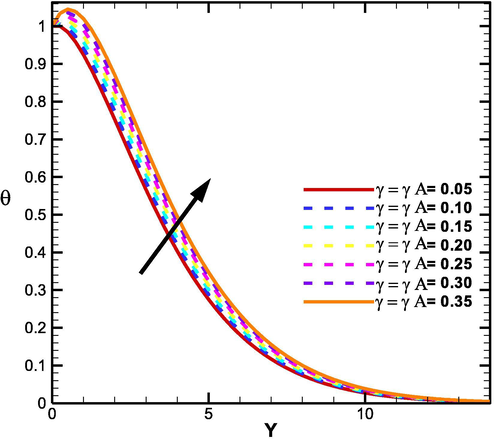

Figs. 9 and 10 demonstrate the velocity as well as temperature fields for the increment ( $0.05⩽\text{(}\gamma \text{=}{\gamma }_{\text{A}}\text{)}⩾0.35$ ) of dimensionless fourth-grade fluid parameters ( $\gamma \text{and}{\gamma }_A$ ). Velocity profiles decrease, and temperature profiles develop for the increment in fourth-grade fluid parameter ( $\gamma \text{and}{\gamma }_A$ ). Variations of concentric fields are exhibited for different values of ${\text{K}}_{\text{r}}$ with considering the order p = 4.

Close

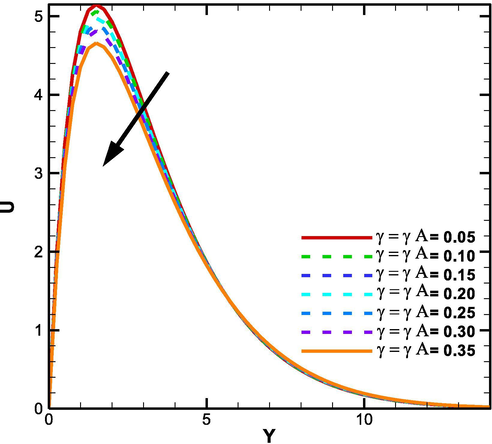

Fig. 9

Dominance of γ and γ_A on U.

Export to PPT

Close

Fig. 10

Dominance of γ and γ_A on θ.

Export to PPT

Due to the rise in a destructive chemical reaction ( ${\text{K}}_{\text{r}}$ ) parameter from $0.50⩽\text{Kr}⩾10.0$ , the concentration fields get decrease (Fig. 11). Physically, a destructive chemical reaction occurs with more disturbances which develops the molecular motion and upsurges the heat transport phenomena, as a result the concentric profiles diminish. Fig. 12 is plotted to visualise the impression of Prandtl number ( ${\text{P}}_{\text{r}}$ ) on θ. The parameter ( ${\text{P}}_{\text{r}}$ ) is the proportion of kinematic viscosity and thermal diffusivity which changes physically with temperature. For instance, water $P_r$  = 7.0 (At 20 °C) and Ammonia gases $P_r$  = 1.38 decline more rapidly than air ${\text{P}}_{\text{r}}$  = 0.71. However, ${\text{P}}_{\text{r}}$  ≪ 1 and ${\text{P}}_{\text{r}}$  ≫ 1 depict the domination of thermal and momentum diffusivity respectively. Prandtl number is used roughly to determine whether heat transport occurs with either conduction or convection process. Since, Prandtl number is inversely proportional to thermal diffusivity so that increasing P_r led the temperature profiles to decrease.

Close

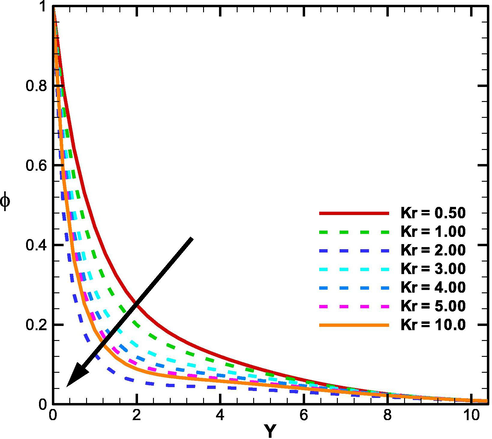

Fig. 11

Dominance of K_r on φ.

Export to PPT

Close

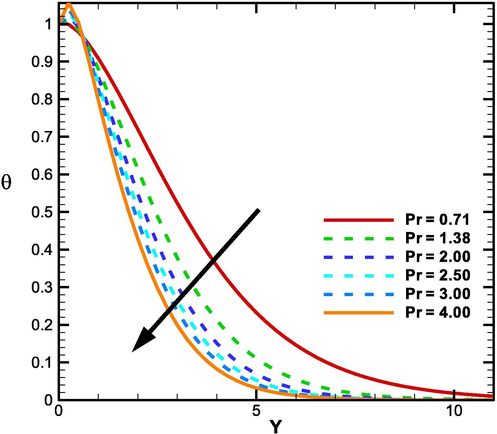

Fig. 12

Dominance of P_r on θ.

Export to PPT

Thermal radiation is known as electromagnetic radiation or the conversion of thermal energy, which generates the thermal motion of particles in matter. Thermal radiation (electromagnetic radiation) could be attributed due to thermal excitation. The temperature could be affected in the presence of thermal radiation at moderate temperatures which are significant. Thermal radiation for a medium which contains it inevitably has pressure and density gradients, and the treatment requires the use of hydrodynamics. Fig. 13 display the variations of Nusselt number profiles for different data of thermal radiation (R) parameter. It is seen that, with the increase ( $0.05⩽\text{R}⩾0.70$ ) of R, the Nusselt number profiles are also increasing. Because for larger values of R the mean absorption coefficient get declines and accelerates the divergence of heat flux. Here, the curve to curve fluctuations are 20.64%, 13.92%, 10.35%, 8.57%, 7.28% and 6.28% when the value of R are changes from 0.05 to 0.70 with the following data 1.1993, 1.21994, 1.24082, 1.25117, 1.25974, 1.26702 and 1.27330 respectively. Fig. 14 represents the Sherwood number profiles for the increment of Schmidt number. For the data of S_c = (2.0–6.0), S_h profiles increase but decrease for S_c = 8.0 and again increase for the values of Sc ( $8.0⩽Sc⩾14.0$ ). Physically, Schmidt number helps to develop the fluid concentration as well as the concentration buoyancy force. Furthermore, streamlines and isotherms profiles can be used to improve the visualisation of fluid fields. Here, the line view is presented to explain the influence of thermal radiation on streamlines and isotherms. In Figs. 15 and 16 represent the thermal and velocity boundary layer from $\text{0}\text{to}\text{+ X}$ the region for X-axis through the vertical plate. It can be seen that thermal and momentum boundary layers increase within the flow region for strong thermal radiation (R) with $\tau \text{=}\text{0}\text{to}\text{30}$ non-dimensional time steps.

Close

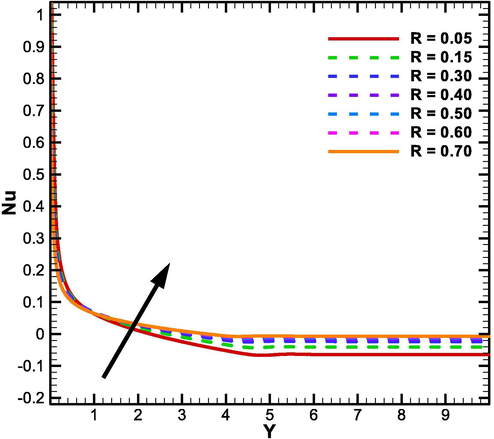

Fig. 13

Dominance of R on N_u.

Export to PPT

Close

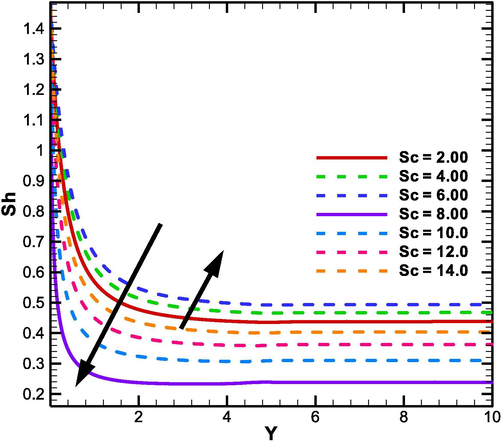

Fig. 14

Dominance of S_c on S_h.

Export to PPT

Close

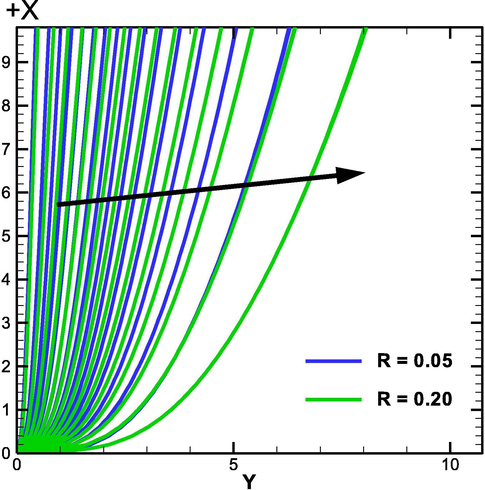

Fig. 15

Isotherms for different data of R with $\tau \text{= 1}\text{0}\text{to}\text{30}$ time steps.

Export to PPT

Close

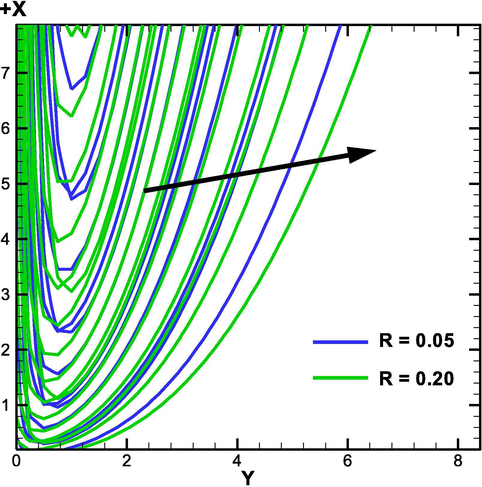

Fig. 16

Streamlines for different data of R with $\tau \text{= 1}\text{0}\text{to}\text{30}$ time steps.

Export to PPT

6 Conclusions

The numerical solution for fourth-grade fluid towards an infinite vertical porous plate with chemical reaction, thermal radiation, heat source, uniform suction, MHD, streamlines and isotherm lines representation has been analysed. The key findings are given below:

• Velocity and skin friction fields decline due to the increment in magnetic parameter.

• Velocity profiles decrease, and temperature fields go up when dimensionless second, third and fourth-grade parameters get to raise.

• For upsurging data of destructive chemical reaction concentric fields diminish.

• Increasing Prandtl numbers tend to diminish the temperature profiles.

• Nusselt number distribution rises due to the enhancement in thermal radiation.

• Strong values of Schmidt number increase the boundary layers in Sherwood number fields.

• Higher values of thermal radiation expand the thickness of thermal and momentum boundary layers in streamline and isothermal lines.
